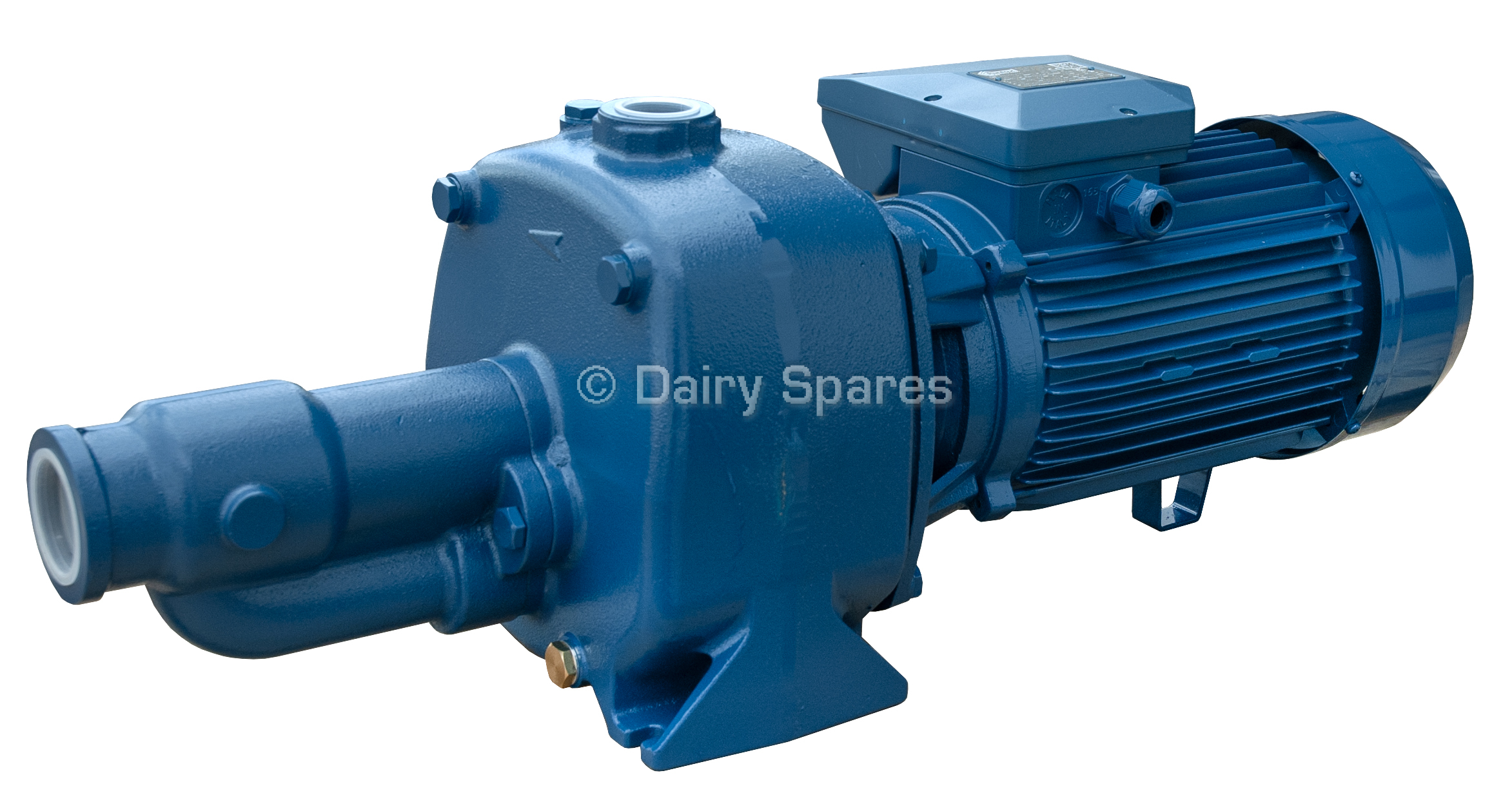

Volume Wash Pump Max 130 l/min. 2430V 1ph 2.2 kW c/w Noryl® Impeller - VWA05B

Volume Wash Pump Max 130 l/min. 2430V 1ph 2.2 kW c/w Noryl® Impeller – VWA05B

You are here: Home > Products > Water Handling > VOLUME WASHERS > VOLUME WASHER PUMPS > Volume Wash Pump Max 130 l/min. 2430V 1ph 2.2 kW c/w Noryl® Impeller – VWA05B

Part No.	Description.	Size/Suitable For.	MOQ
VWA05B	Volume Wash Pump Max 130 l/min. 2430V 1ph 2.2 kW c/w Noryl® Impeller	1½" In/1" Out	1	1	Enquire

Additional Information

Technical Specification

Length: 696mm
Motor size: 2.2kW
Voltage: 230V 50Hz
IE: IE2
Ampage: 13A
Capacitor: 80 microFarad 450V
Impellors: 2 x Noryl
Capacity: 20-130ltr/min
H(m): 65.6-340.2
Port Size: 1.5″ In, 1″ Out
Pump position: Horizontal

It is recommended to use the following Flow Controllers with this unit:

VW067 needs 1¼”-1″ F/M reducer

Downloads

Which Flow Controller to use
